In modern 3D printing technology, the optimization of cooling fan is very important to improve printing quality and efficiency. Although the basic principle of 3D printing seems simple, every detail can not be ignored in order to achieve high-quality printing effect. Among them, the cooling fan, as one of the key components affecting the printing process, plays an important role. This paper will discuss the optimization method of cooling fan of 3D printer and its influence on printing quality.

First, the role of the cooling fan

In FDM (Fused Deposition Molding) 3D printing, materials (such as PLA, ABS, PETG, etc.) need to be extruded at high temperature, and quickly cooled and set. The main function of the cooling fan is to speed up the heat dissipation of the printed layer, so as to ensure that each layer can be cured quickly and keep its shape. This is especially important for printing small structures, suspended parts or bridge structures.

However, insufficient or excessive cooling will have a negative impact on printing quality. For example, insufficient cooling may lead to interlayer deformation or structural collapse, while excessive cooling may cause problems such as material embrittlement and decreased interlayer bonding force.
　　Second, the method of optimizing the cooling fan

1. Set the fan speed reasonably.

Different materials have different cooling requirements. For example, PLA material is suitable for high cooling fan speed (usually 100%), while ABS needs low wind speed, or even turns off the fan completely to prevent warping. Therefore, adjusting the fan speed according to the material used is the first step to optimize the cooling effect.

2. Use the fan shroud

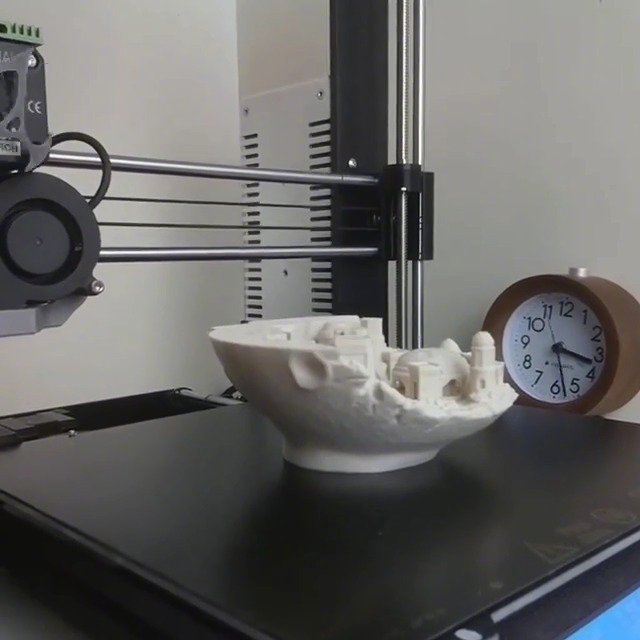

　　The original fan often cannot accurately guide the airflow to the area that needs cooling. By installing a special fan shroud for 3D printing, cold air can be blown to the printing layer at the nozzle outlet more effectively, and the cooling efficiency and uniformity can be improved.

3. Layer Cooling Control.

The layered cooling control function is enabled in slicing software (such as Cura, PrusaSlicer, etc.), which can automatically adjust the fan speed according to the height and structure of the printing layer. For example, reduce the wind speed when printing the bottom layer to avoid warping, and increase the wind speed when printing the suspended structure to enhance the supporting effect.

4. Replace the high-performance fan

Some low-quality cooling fans are noisy, short-lived and have insufficient air volume. Replacing the fan with high air volume and low noise can significantly improve the cooling effect, especially in high-speed printing or complex structure printing.

5. Control the ambient temperature

The effect of the cooling fan is also affected by the ambient temperature. In high temperature environment, the cooling effect of the fan is weakened; In the low temperature environment, it may lead to the material cooling too fast. Therefore, maintaining a stable printing environment is also important for cooling optimization.

Third, the practical application effect of cooling optimization

Cooling optimization in actual printing can obviously improve the following problems:
　　-Reduce wire drawing and burrs on the model surface;

-Improve the forming quality of suspended structure and bridge structure;

-improve the bonding strength between layers and reduce the risk of delamination;

-Shorten the time required for single printing and improve efficiency.

IV. Conclusion
　　To sum up, although the cooling fan is small, it plays an indispensable role in the 3D printing process. Through the scientific optimization of cooling fan, not only the printing quality can be improved, but also the application scope of materials can be broadened and the overall printing experience can be improved. For 3D printing enthusiasts and professionals, it is an important step towards high-quality printing to deeply understand and reasonably set the cooling system.

With the continuous development of 3D printing technology, the intelligence and customization of cooling system will also become the future development trend. Mastering the optimization skills of cooling fans will provide a solid foundation for printing finer and more complex models.
